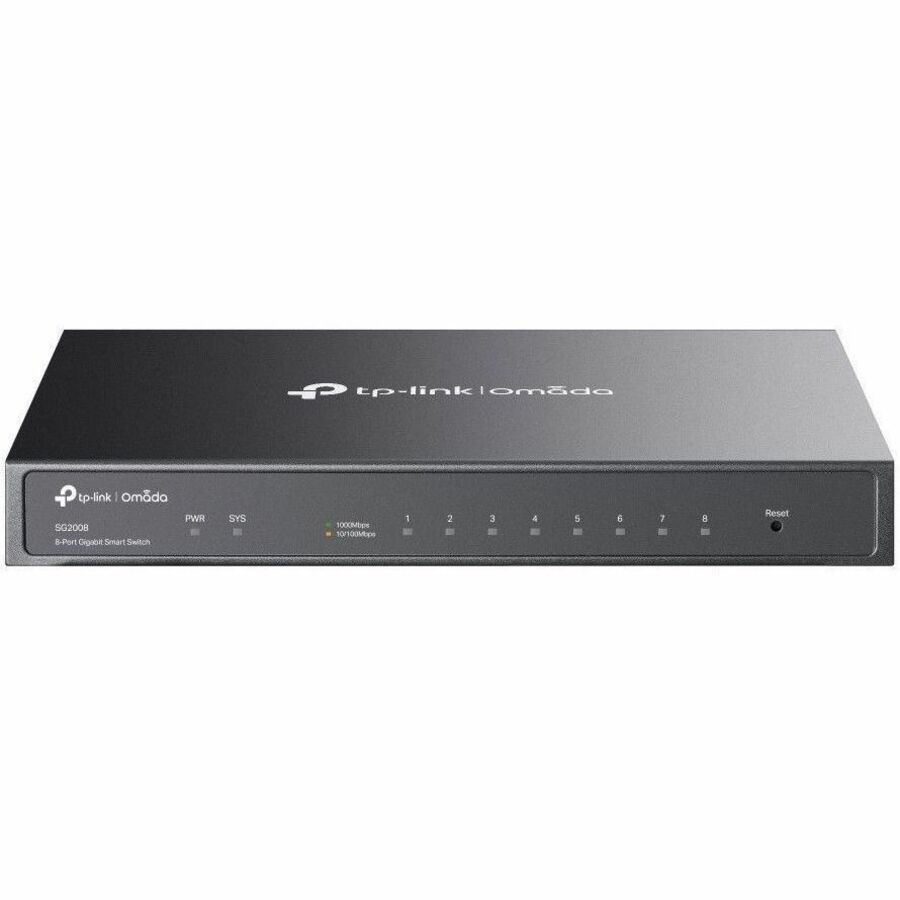

Omada 8-Port Gigabit Smart Switch
- 8× Gigabit RJ45 ports (1 PD port)
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Remote/Cloud Management
- Remote Monitoring (RMON)
- Fanless
- Zero-Touch Provisioning (ZTP)
- Broadcast Storm Control
- DHCP Relay
- DHCP Snooping
- Access Control List
- Support Dual Image
- Reset Button
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 × Gigabit Ethernet RJ-45 Network Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1x
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source
- Power Adapter
- DC
- PoE
- Power Consumption
- 6.40 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Desktop
- Wall Mountable
- Table Top
- Height
- 1"
- Width
- 8.2"
- Depth
- 4.9"
- Miscellaneous
- Application/Usage
- Network
- Traffic
- Wireless Access Point
