- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Fanless
- Access Control List
- VLAN Segmentation
- Loopback Detection
- DHCP Relay
- DHCP Snooping
- Remote Monitoring (RMON)
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 100/1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ah
- IEEE 802.1Q
- IEEE 802.1ab
- Management & Protocols
- Manageable
- Yes
- Data Link Protocols
- HTTP
- HTTPs
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Power Consumption
- 6.84 W
- Physical Characteristics
- Product Material
- Metal
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Desktop
- Height
- 1.7"
- Width
- 11.6"
- Depth
- 7.1"
- Miscellaneous
- Package Contents

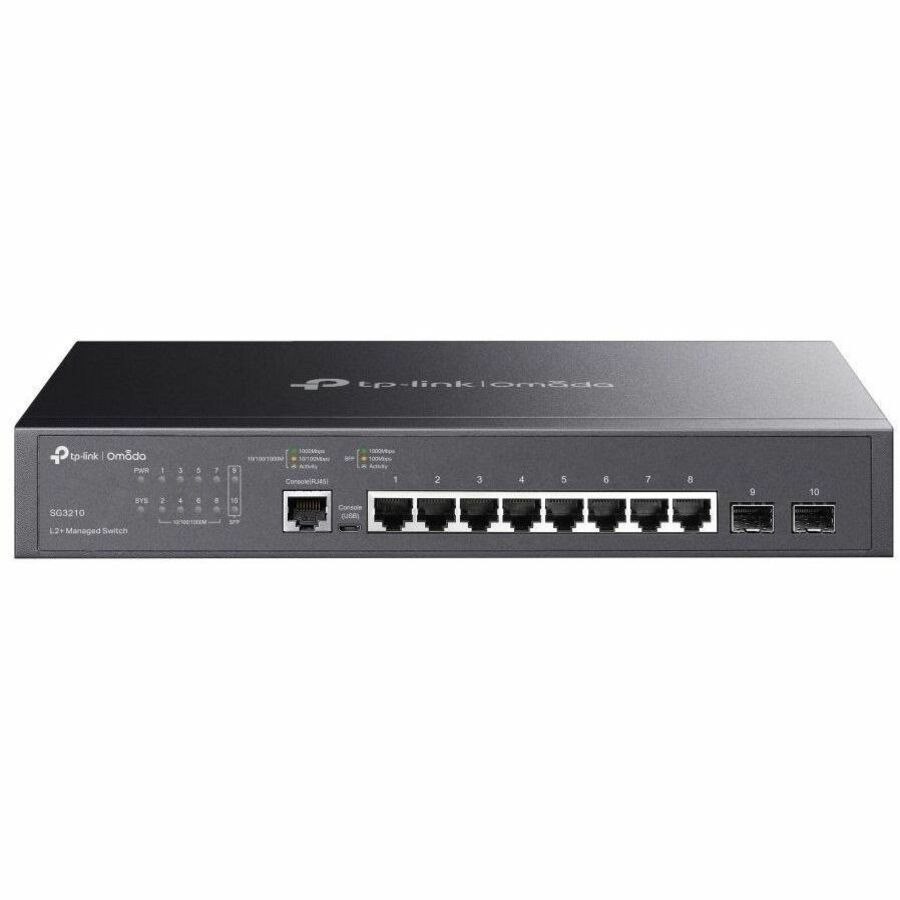

- 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
- Application/Usage
- Network
- Certifications & Standards
- CE
- FCC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
