Control and Configure Beyond Plug-and-Play
NETGEAR Easy Smart Managed Switches with PoE+ meet the needs of growing businesses by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that help optimize the performance of the network. Easy Smart Managed Switches are the perfect upgrade from the basic Unmanaged Switches, delivering essential networking management features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other PoE devices. These new Gigabit Ethernet PoE+ Easy Smart Managed Switch models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.
Highlights
- Enable network configuration and management at an affordable price
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use mobile-device friendly web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto "denial-of-service" (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention, loop detection, and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing a soft reboot
- 802.3at standard providing up to 30W per port
- Fanless with versatile mounting options (desktop and wall-mountable)
- General Information
- Manufacturer
- Netgear, Inc
- Manufacturer Website Address
- http://www.netgear.com
- Brand Name
- Netgear
- Product Line
- Business
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Plug and Play
- VLAN Segmentation
- Loop Protection
- Loopback Detection
- Broadcast Storm Control
- Fanless
- Energy Efficient
- Auto Denial of Service (DoS) Prevention
- Interfaces/Ports
- Total Number of Network Ports
- 15
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 15 x Gigabit Ethernet PoE+
- 1 x Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 1
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- Management & Protocols
- Manageable
- Yes
- Switch Management Type
- Easy Smart Managed
- Data Link Protocols
- HTTP
- Reliability
- MTBF
- 570435 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 231 W
- Power Source
- Power Adapter
- Power Consumption
- 10.20 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Desktop
- Wall Mountable
- Enclosure
- Height
- 1.1"
- Width
- 11.3"
- Depth
- 4"
- Weight (Approximate)
- 1.83 lb
- Miscellaneous
- Package Contents

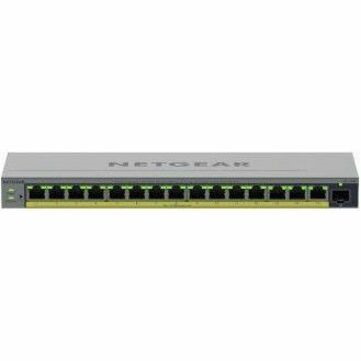

- Business GS116EPP Ethernet Switch
- Power Adapter (power cable varies by region)
- Wall-mount Installation Kit
- Rubber Feet
- Documentation Download Flyer
- Application/Usage
- Network
- Business
- VoIP Phone
- Surveillance
- IP Camera
- Wireless Access Point
- Router
- Laptop
- Certifications & Standards
- CE mark, commercial
- FCC Part 15 class B
- CE/EN55032/24
- VCCI
- ACMA
- CSA safety
- KC
- BSMI
