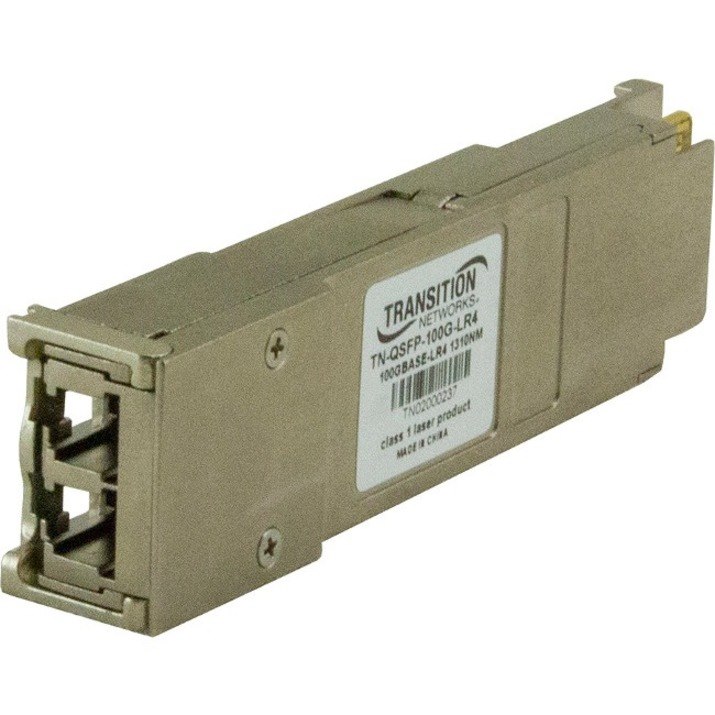

The Transition Networks TN-QSFP-100G Series QSFP28 optical transceivers are hot-swappable pluggables that can be installed in any QSFP28 port for 100 Gigabit Ethernet connections. The new generation of 100G transceiver solutions, which are compliant with the IEEE 802.3bm standard, offer customers a wide selection of high-density, compact footprint and low-power 100G Ethernet connectivity options.
Application includes: data center, high-performance computing network, core network
- General Information
- Manufacturer
- Transition Networks, Inc
- Manufacturer Website Address
- http://www.transition.com
- Brand Name
- Transition Networks
- Product Series
- TN-QSFP-100G
- Product Type
- QSFP28
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Application/Usage
- Optical Network
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC 100GBase-LR4 Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 100 Gigabit Ethernet
- Network Technology
- 100GBase-LR4
- Physical Characteristics
- Form Factor
- Hot-swappable
- Hot-pluggable
- Height
- 0.3"
- Width
- 0.7"
- Depth
- 2.8"
- Miscellaneous
- Compatibility
MSA Compliant
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
