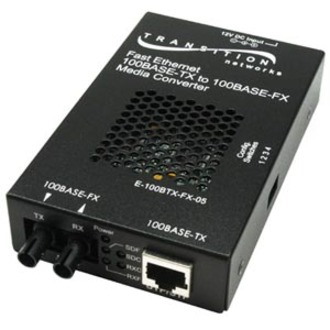

The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential; NDAA Compliant, TAA Compliant
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.transition.com
- Brand Name
- Lantronix
- Product Type
- Transceiver/Media Converter
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media & Performance
- Maximum Distance Supported
- 20 km
- Network & Communication
- Network Technology
- 100Base-TX
- 100Base-FX
- Physical Characteristics
- Form Factor
- External
- Wall Mountable
- Height
- 1"
- Width
- 3"
- Depth
- 4.7"
- Miscellaneous
- Additional Information
- Optical Wavelength : 1310 nm
Features:
- Extended Temperature Capable
- AutoCross
- Auto-Negotiation
- Link Pass Through
- Far End Fault (FEF)
- Pause (IEEE 802.3xy)
- TAA Compliant
- Yes
