High performance cellular router with dual redundant communications for complex transit and transportation systems

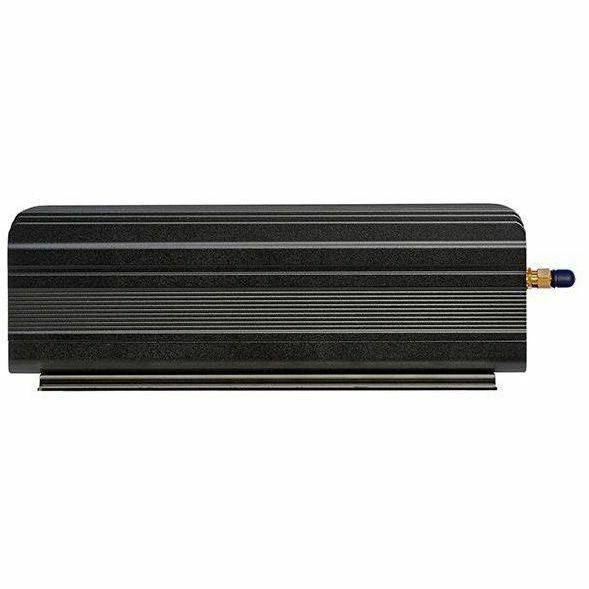

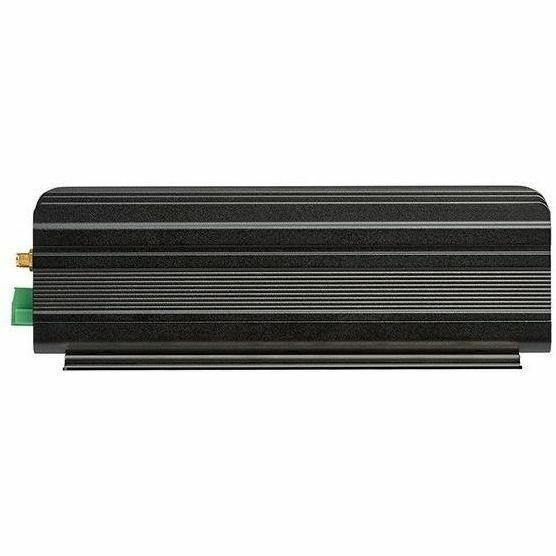

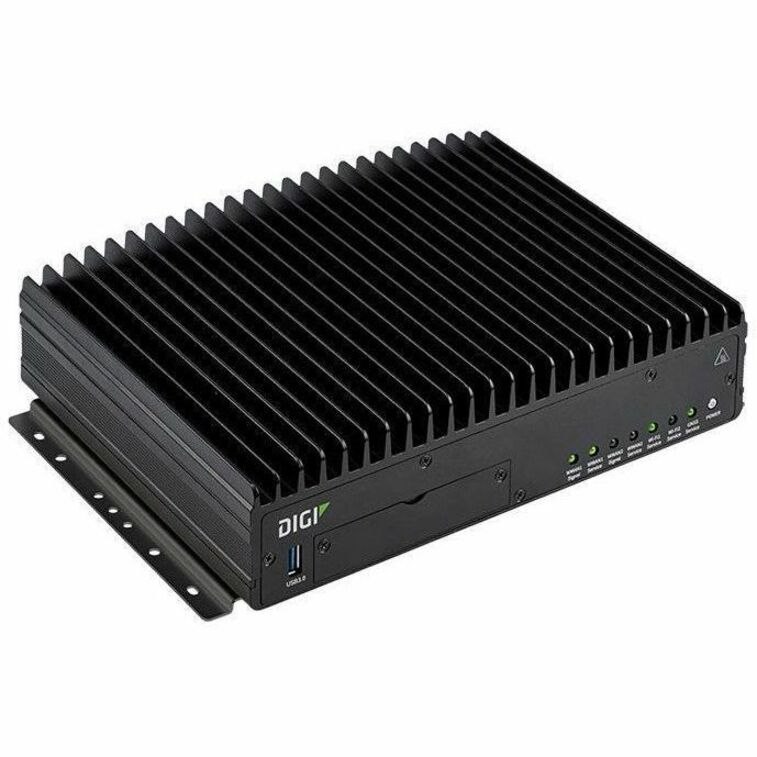

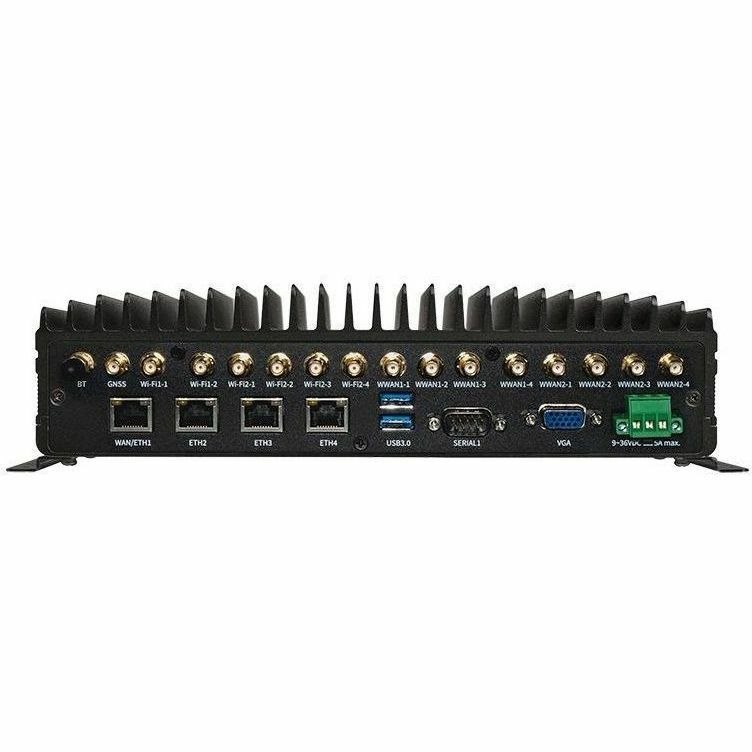

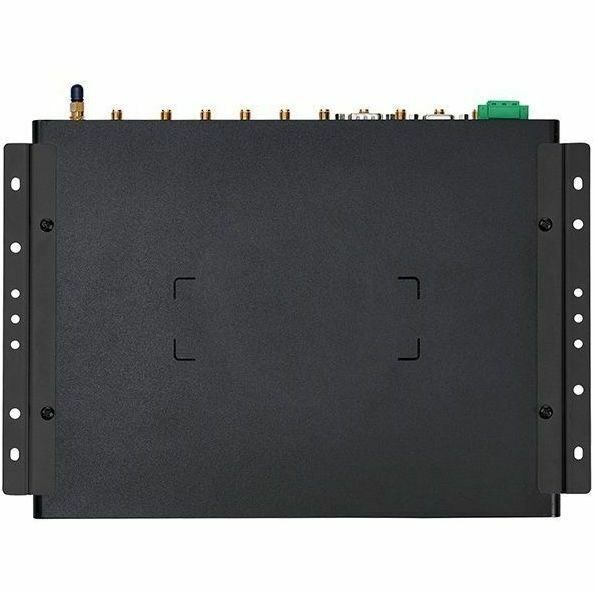

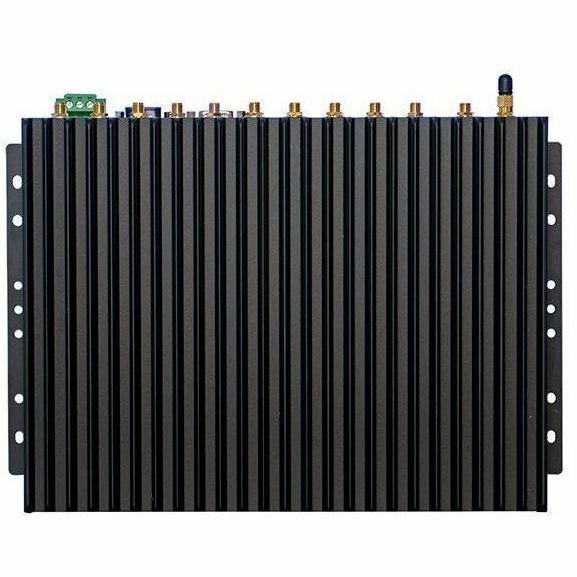

Ideal for challenging transportation and mobile environments, Digi TX64 is a 5G and 4G LTE-Advanced Pro cellular router with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated WiFi access point, USB, serial and 4-port Gigabit Ethernet switch, as well as a variety of configuration options including dead reckoning GNSS and Bluetooth®.

Internet access for riders is managed securely and without impact to onboard bus systems. Technologies like 5G NR, EN DC and carrier aggregation deliver up to Gigabit speeds to passengers. Onboard systems retain priority and any remaining bandwidth is made available to Internet traffic.

A captive portal and splash page enable term acceptance, targeted messaging and agency branding. Standard HTTP/ DNS redirect can be used to block malware and unwanted content through popular third-party service providers or an agency server. FirstNet Ready™ devices provide additional support for critical primary responder communication.

Reliable power circuitry supports 9-36 VDC input with ignition sense for direct integration into the vehicle's power source. Dual cellular and dual Wi-Fi modules provide true segmented traffic flow of private and public data for fare collection, CAD/AVL data, camera log backhaul and passenger Wi-Fi access.

FEATURES AND BENEFITS

• 5G platform: future-built with powerful quad-core processor
• Segmented private and public data communication across 5G NR Sub-6 GHz, 4G LTE-Advanced Pro and 4G LTE-Advanced modems
• FirstNet Ready™ for primary responder communication
• Wired Gigabit Ethernet (4-port) for onboard systems
• Video and vehicle data offload over Wi-Fi 5 4x4 backhaul
• Passenger Wi-Fi over Wi-Fi 5 2x2 access point
• Digi Remote Manager® platform for easy setup, mass configuration and management

• General Information
• • Manufacturer
  • Digi International
  • Manufacturer Website Address
  • http://www.digi.com
  • Brand Name
  • Digi
  • Product Type
  • Modem/Wireless Router

• Warranty
• • Limited Warranty
  • 3 Year
