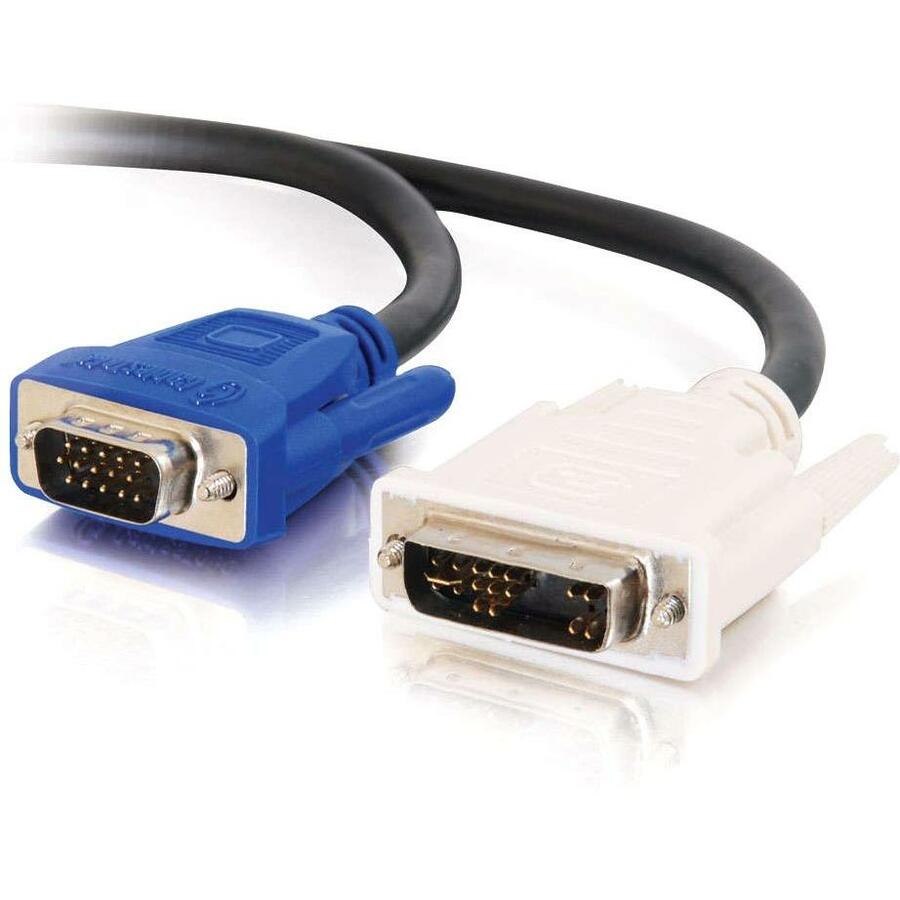

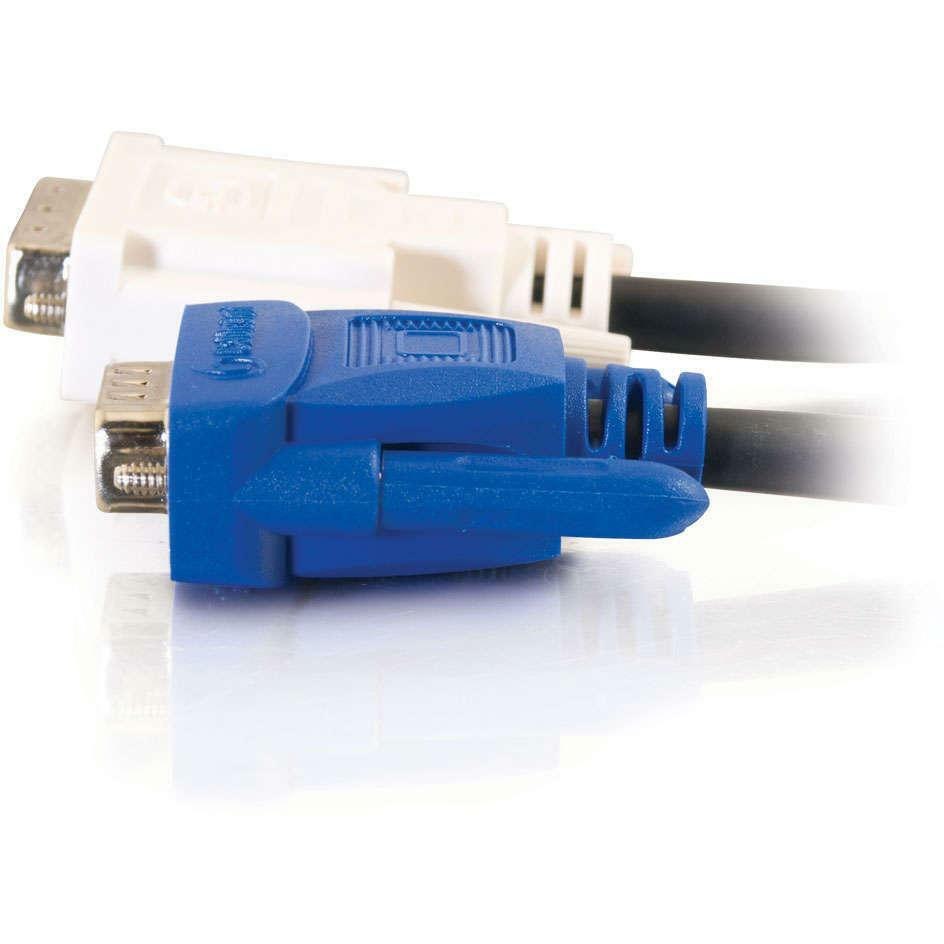

Digital Visual Interface (DVI) is the standard interface for high-performance connection between PCs and flat panel displays, CRT displays, projectors, and HDTV. This video cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). Three analog 30 AWG coaxial lines enable high speed analog transmission.
Tri-shielded undermold and braid shield protects against unwanted EMI/RFI interference. Each coax line is individually wrapped in foam-polyolefin insulation and overwrapped with a braided tinned copper shield. 28 AWG copper conductors are individually insulated in hard-density polypropylene to minimize crosstalk, and ensure high speed, error-free transmission. Gold-plated contacts provide full conductivity with no data loss. PC and Mac compatible cable supports hot-plugging of DVI display devices. PC-99 color-coded: blue, white.
Please Note: The DVI connector on this cable can only be inserted into a DVI-I interface.
- General Information
- Manufacturer
- C2G
- Manufacturer Website Address
- http://www.cablestogo.com
- Brand Name
- C2G
- Product Type
- Video Cable
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Length
- 6.56 ft
- Connector Type on First End
- DVI-A Analog Video - Male
- Connector on First End Details
- 1 x 17-pin DVI-A Analog Video - Male
- Connector Type on Second End
- HD-15 - Male
- Connector on Second End Details
- 1 x HD-15 - Male
- Conductor
- Copper
- Physical Characteristics
- Product Color
- Black
- Weight (Approximate)
- 1.50 lb
- Miscellaneous
- Additional Information
- PC99 color-coded: blue, white
- Each coax line is individually wrapped in foam-polyolefin insulation
- 28AWG copper conductors are individually insulated in hard-density polypropylene
- Certifications & Standards
- RoHS
- DVI DDWG
- Environmentally Friendly
- Yes
- Country of Origin
- China
