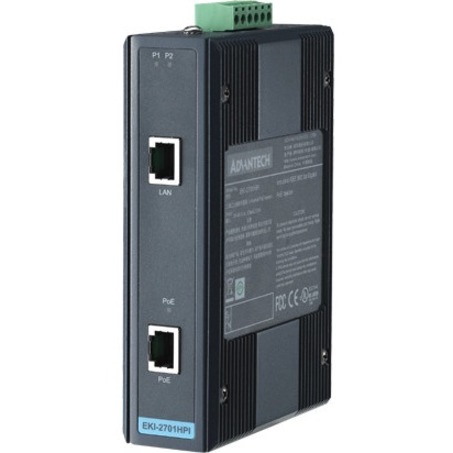

With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- PoE Injector
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Protection Type
- Over Current
- Power Reverse
- Power Description
- Input Voltage
- 24 V DC
- 48 V DC
- Maximum Output Voltage
- 55 V DC
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000TX
- Output Ports
- 1 x 10/100/1000TX
- Physical Characteristics
- Form Factor
- DIN Rail/Wall Mountable
- Height
- 4.7"
- Width
- 1.1"
- Depth
- 3.3"
- Miscellaneous
- Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3af/at
- IEEE 802.3ab
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- China
